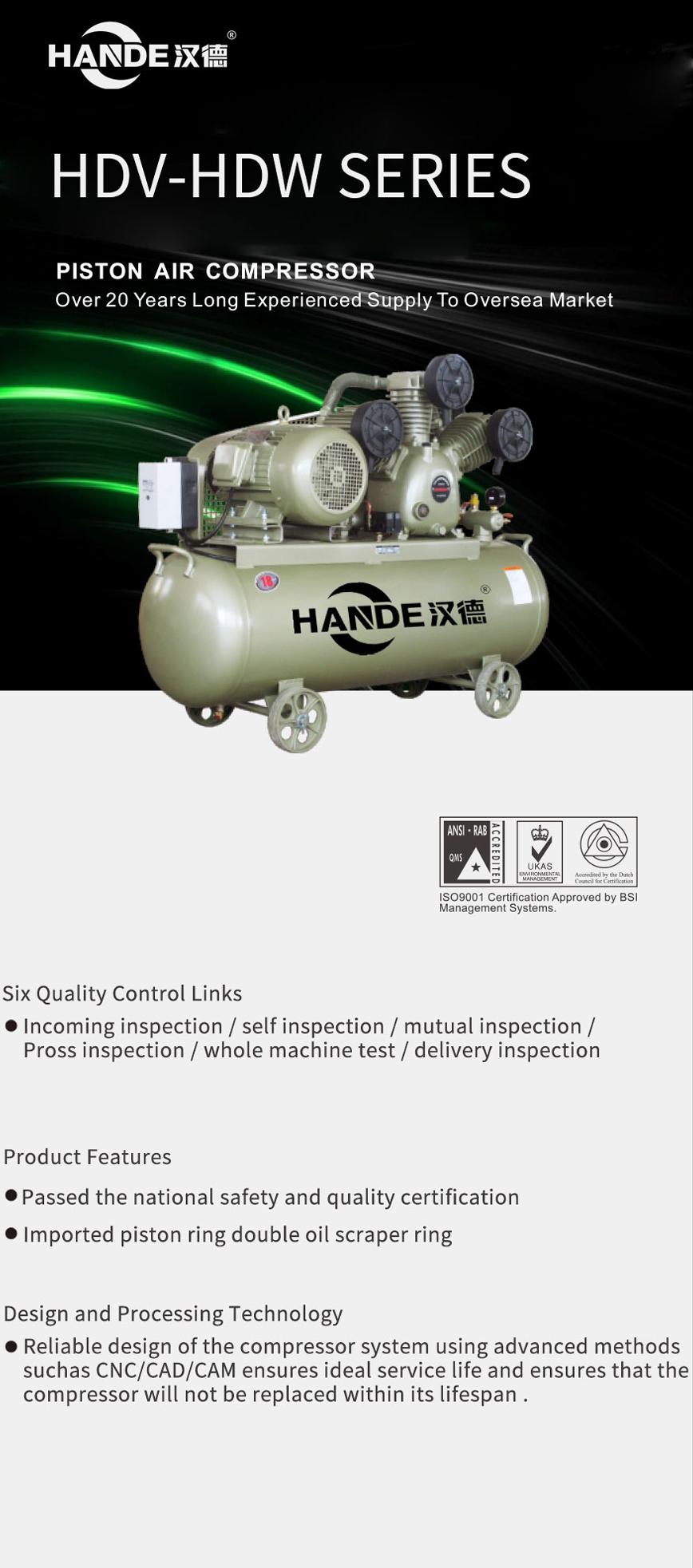

HDW Series Piston Air compressor

Representative model:HD-G5PM15 HD-C5PM22

Motor Power:67KW-292KW

Volume flow:6.0m³/min- 30.0/min

Working pressure:4.0Mpa

Note: Other special standards can be customized. For more details, please consult us


Product Information

The maln sports accessory desian adoots a reasonable compression ratio, efectively reducing wear and improving durability. The intakeand exhaust valves at allevels of the turbocharger are selected from wel-known brands, with low operating noise and long service life. Thepiston booster adopts a low-speed operation mechanism, significantly extending the service life of the piston rings and packing. There arefew types of consumables, easy replacement, and daly maintenance does not require lifting equipment. The integrated control panelmanages all components uniformly and is equipped with a graphical operation interface, which is intuitive and easy to use


Product Parameters:

ModelExhaust pressureDisplacementpowerPiston displacementitineraryGas tank volumeweightDimensions
Mpam³/minKW/HPL/minmmLMedical historyL×W×H(mm)
HDW36080.80.363/436048100106108×43×84
HDW67080.80.675.5/7.5106860150198130×52×108
HDW90080.80.97.5/10151775250247165×51×117
HDW150080.81.511/15203680250352165×62×120
HDW190080.81.915/20290190300461162×70×132
HDW600252.50.67.5/1083075250362166×57×117
HDW550303.0 0.557.5/1081175250362166×57×117
HDW1050100.11.057.5/10116980250322165×56×120

Note: The company's products are constantly being optimized, and the parameters are subject to change without prior notice; Different voltage and other special models can be customized, please consult the business.
