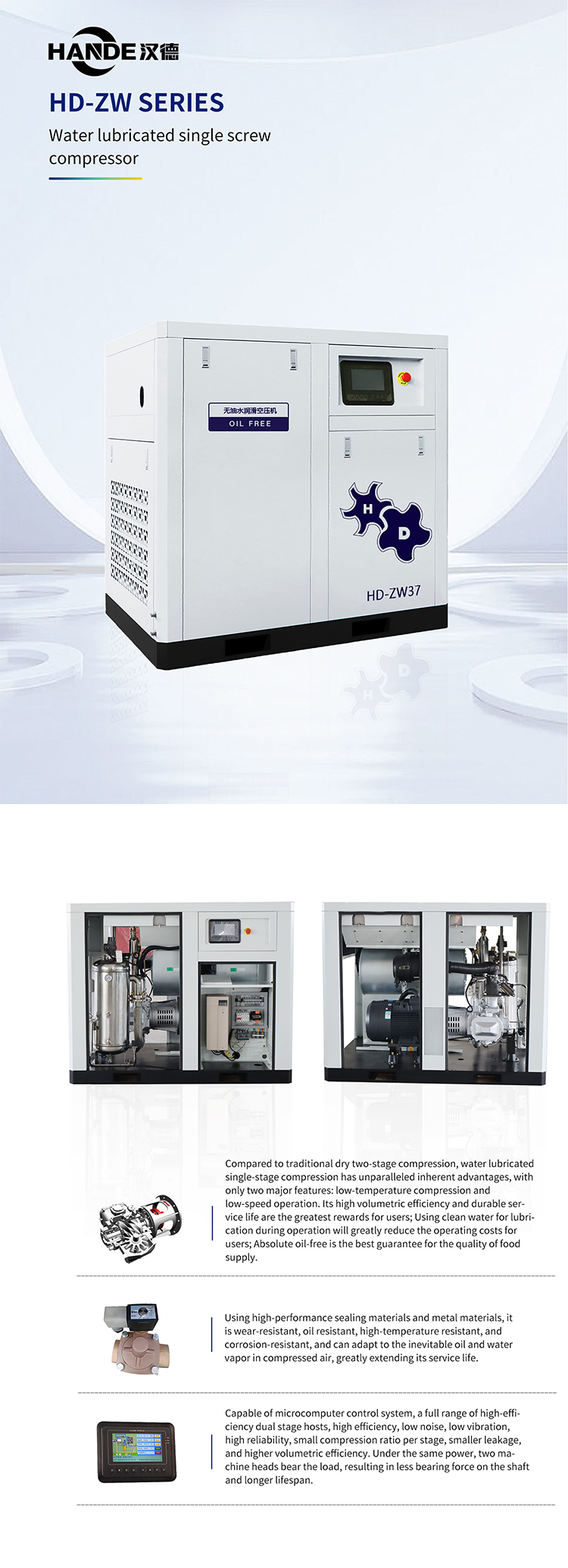

HD-ZW Series Water Lubricated Oil-Free Screw Compressor

PRODUCT MODEL：HD-ZW8-HD-ZW315

Motor Power：7.5KW-315KW

Volume flow：1.0m³/min- 50.0m³/min

Working pressure：0.8Mpa

Note: Other special standards can be customized. For more details, please consult us

Product Information

Using water as the lubricating and sealing medium, the compression chamber is completely oil-free, and the output air meets the ISc8573-1 Class 0 oil-free standard; Water lubrication reduces mechanical friction losses and reduces energy consumption by 15% -30%compared to traditional oil lubrication models; No oi mist evaporation, avoiding the risk of oil pollution; The water body can be recycledand filtered for use, the wastewater treatment is simple, and it meets the green manufacturing standards; Water lubrication avoidsmaintenance of the oilsystem; Equipped with an Internet of Things (loT) monitoring system to track real-time parameters such as watertemperature,pressure,and flow rate

Product Parameters:

Model	Exhaust pressure	Displacement	power	noises	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW	dB(A)	inch		Medical history	L×W×H(mm)
HD-ZW7.5	0.8	1.0	7.5	60±2	Rp3/4	Air cooling	300	1000×720×1050
	1.0	0.8
HD-ZW11	0.8	1.6	11	63±2	Rp3/4	Air cooling	350	1156×845×1250
	1.0	1.4
HD-ZW15	0.8	2.5	15	65±2	Rp1	Air cooling	510	1306×945×1260
HD-ZW18	0.8	3.0	18	67±2	Rp1	Air cooling	600	1520×1060×1390
	1.0	2.5
HD-ZW22	0.8	3.6	22	68±2	Rp1	Air cooling	650	1520×1060×1390
	1.0	3.2
HD-ZW30	0.8	5.0	30	69±2	Rp1-1/4	Air cooling	800	1760×1160×1490
	1.0	4.5
HD-ZW37	0.8	6.2	37	71±2	Rp1-1/4	Air cooling	850	1760×1160×1490
	1.0	5.8
HD-ZW45	0.8	7.3	45	74±2	Rp1-1/2	Water	1050	1760×1160×1490
					Rp1-1/4	Air cooling	1200

Model	Exhaust pressure	Displacement	power	noises	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW	dB(A)	inch		Medical history	L×W×H(mm)
HD-ZW55	0.8	10.0	55	74±2	Rp2	Water	1020	1900×1250×1361
	1.0	9.0
	0.8	10.0				Air cooling	1430	2350×1250×1880
HD-ZW75	0.8	13.0	75	75±2	Rp2	Water	1330	1900×1250×1361
	1.0	10.0
	0.8	13.0				Air cooling	1640	2550×1620×1880
HD-ZW90	0.8	15.0	90	76±2	Rp2	Water	1260	1900×1250×1361
	1.0	12.8
	0.8	15.0				Air cooling	1620	2550×1620×1880
HD-ZW110	0.8	20.0	110	78±2	DN65	Water	1790	2200×1600×1735
	1.0	17.8
	0.8	20.0				Air cooling	3500	3000×1700×2250
HD-ZW132	0.8	23.0	132	80±2	DN65	Water	2070	2200×1600×1735
	1.0	19.0

Model	Exhaust pressure	Displacement	power	noises	Exhaust port pipe diameter	Cooling method	weight	Dimensions
Model	Mpa	m³/min	KW	dB(A)	inch	Cooling method	Medical history	L×W×H(mm)
HD-ZW160	0.8	26.0	160	82±2	DN65	Water	2900	2200×1600×1735
HD-ZW185	0.8	30.0	185	83±2	DN100	Water	3300	2860×1800×1945
HD-ZW200	0.8	33.0	200	83±2	DN100	Water	3500	2860×1800×1945
HD-ZW220	0.8	36.0	220	85±2	DN100	Water	4500	2860×2000×2300
HD-ZW250	0.8	40.0	250	85±2	DN100	Water	4700	2860×2000×2300
HD-ZW315	0.8	50.0	315	90±2	DN100	Water	5000	2860×2000×2300

Model	Exhaust pressure	Displacement	power	noises	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW	dB(A)	inch		Medical history	L×W×H(mm)
HD-ZW52	2.0	6.0	37+15	70±2	DN25	Air cooling	1820	3000×1400×1700
						Water	1400	2900×1400×1700
HD-ZW59	3.0	6.0	37+22	70±2	DN25	Air cooling	2000	3000×1400×1700
						Water	1700	2900×1400×1700
HD-ZW67	4.0	6.0	37+30	70±2	DN25	Air cooling	2100	3000×1400×1700
						Water	1800	2900×1400×1700
HD-ZW77	2.0	10.0	55+22	73±2	DN32	Air cooling	3000	3600×1750×2000
						Water	2200	3500×1500×1730
HD-ZW92	3.0	10.0	55+37	73±2	DN32	Air cooling	3000	3600×1750×2000
						Water	2300	3500×1500×1730
HD-ZW112	4.0	10.0	75+37	73±2	DN32	Air cooling	3400	4000×1750×2030
						Water	2400	3500×1500×1730
HD-ZW105	2.0	13.0	75+30	75±2	DN40	Air cooling	3500	4000×1750×2030
						Water	2700	3500×1500×1730
HD-ZW120	3.0	13.0	75+45	75±2	DN40	Air cooling	3500	4000×1750×2030
						Water	2950	3500×1500×1730

Model	Exhaust pressure	Displacement	power	noises	Exhaust port pipe diameter	Cooling method	weight	Dimensions
Model	Mpa	m³/min	KW	dB(A)	inch	Cooling method	Medical history	L×W×H(mm)
HD-ZW135	4.0	13.0	90+45	75±2	DN40	Water	3000	3500×1500×1730
HD-ZW127	2.0	16.0	90+37	77±2	DN40	Water	3300	4000×1700×1800
HD-ZW145	3.0	16.0	90+55	77±2	DN40	Water	3500	4000×1700×1800
HD-ZW165	4.0	16.0	110+55	77±2	DN40	Water	3500	4000×1700×1800
HD-ZW165	2.0	20.0	110+55	78±2	DN50	Water	3650	4000×1700×1800
HD-ZW185	3.0	20.0	110+75	78±2	DN40	Water	4000	4000×1700×1800
HD-ZW207	4.0	20.0	132+75	78±2	DN40	Water	4000	4000×1700×1800
HD-ZW197	2.0	24.0	132+65	78±2	DN50	Water	4500	4000×1800×2100
HD-ZW222	3.0	24.0	132+90	78±2	DN50	Water	4500	4000×1800×2100
HD-ZW250	4.0	24.0	160+90	78±2	DN50	Water	4600	4000×1800×2100
HD-ZW220	2.0	28.0	185+55	78±2	DN65	Water	4600	4200×2000×2100
HD-ZW260	3.0	28.0	185+75	78±2	DN50	Water	4700	4200×2000×2100
HD-ZW290	4.0	28.0	200+90	78±2	DN50	Water	4800	4200×2000×2100
HD-ZW295	2.0	36.0	185+110	80±2	DN65	Water	5000	4500×2250×2200
HD-ZW317	3.0	36.0	185+132	80±2	DN65	Water	5000	4500×2250×2200
HD-ZW360	4.0	36.0	200+160	80±2	DN65	Water	5000	4500×2250×2200
HD-ZW330	2.0	40.0	220+110	80±2	DN65	Water	5000	4500×2250×2200
HD-ZW352	3.0	40.0	220+132	80±2	DN65	Water	5000	4500×2250×2200
HD-ZW405	4.0	40.0	220+185	80±2	DN65	Water	5000	4500×2250×2200

Model	Exhaust pressure	Displacement	power	noises	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW	dB(A)	inch		Medical history	L×W×H(mm)
HD-ZW11	0.4	2.5	11	58±2	RP1	Air cooling	600	1306×945×1260
HD-ZW15	0.4	3.6	15	60±2	RP1	Air cooling	800	1520×1060×1390
HD-ZW22	0.4	5.0	22	61±2	RP1-1/4	Air cooling	1050	1760×1160×1490
HD-ZW37	0.4	8.1	37	65±2	RP2	Air cooling	1950	2350×1250×1880
						Water	1150	1900×1250×1361
HD-ZW45	0.4	10.0	45	70±2	RP2	Air cooling	2050	2350×1250×1880
						Water	1200	1900×1250×1361
HD-ZW55	0.4	13.0	55	71±2	RP2	Air cooling	2400	2550×1620×1880
						Water	1550	1900×1250×1361
HD-ZW75	0.4	15.0	75	75±2	RP2	Air cooling	2550	2550×1620×1880
						Water	2000	1900×1250×1361
HD-ZW90	0.4	20.0	90	77±2	DN65	Air cooling	3350	3000×1700×2250
						Water	2550	2200×1600×1735

Model	Exhaust pressure	Displacement	power	noises	Exhaust port pipe diameter	Cooling method	weight	Dimensions
Model	Mpa	m³/min	KW	dB(A)	inch	Cooling method	Medical history	L×W×H(mm)
HD-ZW110	0.4	26.0	110	77±2	DN65	Water	2750	2200×1600×1735
HD-ZW132	0.4	30.0	132	78±2	DN100	Water	3100	2860×1800×1945
HD-ZW160	0.4	33.0	160	78±2	DN100	Water	3300	2860×1800×1945
HD-ZW185	0.4	40.0	185	79±2	DN100	Water	4400	2860×1800×1945
HD-ZW200	0.4	45.0	200	80±2	DN100	Water	4500	2860×1800×1945
HD-ZW220	0.4	50.0	220	80±2	DN100	Water	4600	2860×1800×1945

Note: The company's products are constantly being optimized, and the parameters are subject to change without prior notice; Different voltage and other special models can be customized, please consult the business.
