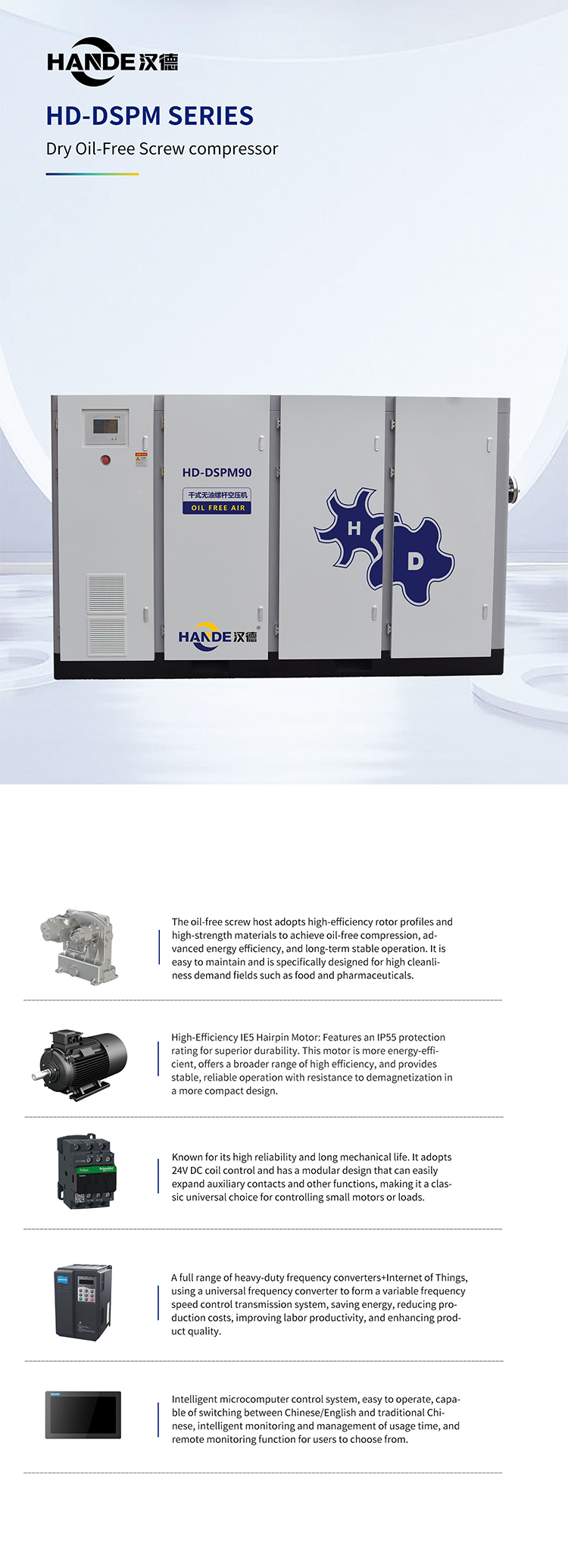

PRODUCT MODEL:HD-DSPM45 / HD-DSPM250
Motor Power:55KW-425KW
Volume flow:8.3m³/min-63.8m³/min
Working pressure:0.8Mpa-1.0Mpa
Note: Other special standards can be customized. For more details, please consult us
PRODUCT MODEL:HD-DSPM45 / HD-DSPM250
Motor Power:55KW-425KW
Volume flow:8.3m³/min-63.8m³/min
Working pressure:0.8Mpa-1.0Mpa
Note: Other special standards can be customized. For more details, please consult us
Food and beverage: filing, stirring, pneumatic conveying; Petrochemical industry: process gas, reactor inlet, feed gas pressurization, andpneumatic conveving: Natural gas industry: natural gas boosting and filing, gas storage iniection, pipeline boosting; Aerospace and MlilitanIndustry: Wind Tunnel Experiments, Engine Testing Absolute Oil Free: Compression Chamber Oi Free, Producing the Highest Quality PureCompressed Air, Efficient and energy-saving: The non-contact design of the rotor results in low friction, high efficiency, and eliminates thecost of oilremoval at the rear end. Reliable and durable: Precise synchronous gears ensure no wear on the rotor, and the core componentshave an extremely long lifespan, Easy maintenance: No need to replace oil and related components, long maintenance cycle, modular design is more convenient, Smooth operation: ow vibration, low noise, no need for special foundation. inteligent control: real-timemonitoring, intelligent adjustment, fault warning, and support for remote management of the internet of Things.
Product Parameters:
| Model | Exhaust pressure | Displacement | power | Ambient temperature | Exhaust port pipe diameter | Cooling method | weight | Dimensions |
| Mpa | m³/min | KW/HP | ℃ | inch | Medical history | L×W×H(mm) | ||
| HD-DSPM55 | 0.8 | 9.4 | 55/75 | 0~40 | DN65 | Air cooling | 2750 | 3150×1750×1800 |
| HD-DSPM75 | 0.8 | 12.3 | 75/100 | 0~40 | DN65 | Air cooling | 2800 | 3150×1750×1800 |
| HD-DSPM90 | 0.8 | 14.9 | 90/120 | 0~40 | DN65 | Air cooling | 2850 | 3150×1750×1800 |
| HD-DSPM110 | 0.8 | 19.1 | 110/150 | 0~40 | DN80 | Air cooling | 3400 | 3600×1850×2000 |
| HD-DSPM132 | 0.8 | 21.5 | 132/175 | 0~40 | DN80 | Air cooling | 3500 | 3600×1850×2000 |
| HD-DSPM160 | 0.8 | 26.0 | 160/200 | 0~40 | DN100 | Air cooling | 4800 | 4000×2100×2300 |
| HD-DSPM185 | 0.8 | 28.3 | 185/250 | 0~40 | DN100 | Air cooling | 5000 | 4000×2100×2300 |
| HD-DSPM200 | 0.8 | 31.3 | 200/280 | 0~40 | DN100 | Water | 5200 | 3800×2280×2200 |
| HD-DSPM220 | 0.8 | 35.1 | 220/300 | 0~40 | DN100 | Water | 5500 | 4100×2280×2200 |
| HD-DSPM250 | 0.8 | 42.5 | 250/350 | 0~40 | DN100 | Water | 5700 | 4100×2280×2200 |
| HD-DSPM280 | 0.8 | 48.4 | 280/375 | 0~40 | DN125 | Water | 6500 | 4300×2280×2400 |
| HD-DSPM315 | 0.8 | 53.1 | 315/430 | 0~40 | DN125 | Water | 7000 | 4300×2280×2400 |
| HD-DSPM355 | 0.8 | 58.3 | 355/475 | 0~40 | DN125 | Water | 7500 | 4300×2280×2400 |
| HD-DSPM400 | 0.8 | 63.0 | 400/535 | 0~40 | DN125 | Water | 8000 | 4300×2280×2400 |
Note: The company's products are constantly being optimized, and the parameters are subject to change without prior notice; Different voltage and other special models can be customized, please consult the business.
