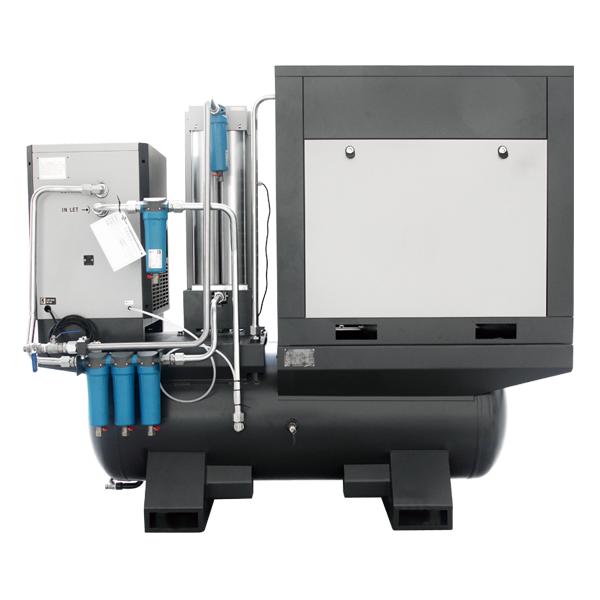

Representative model:HD-G5PM15 HD-C5PM22
Motor Power:11KW-22KW
Volume flow:1.1m³/min- 2.1m³/min
Working pressure:1.5Mpa
Note: Other special standards can be customized. For more details, please consult us
Representative model:HD-G5PM15 HD-C5PM22
Motor Power:11KW-22KW
Volume flow:1.1m³/min- 2.1m³/min
Working pressure:1.5Mpa
Note: Other special standards can be customized. For more details, please consult us

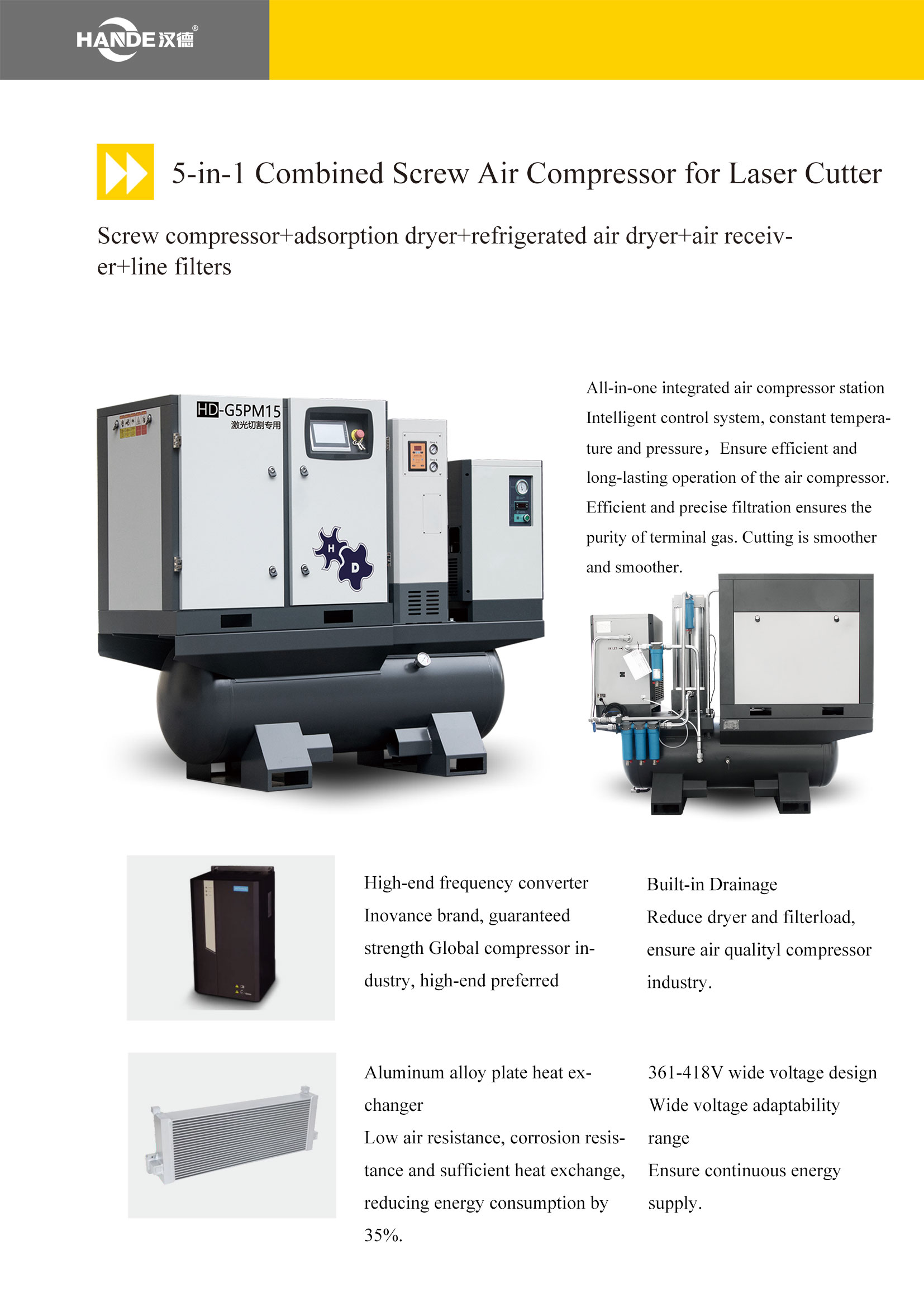

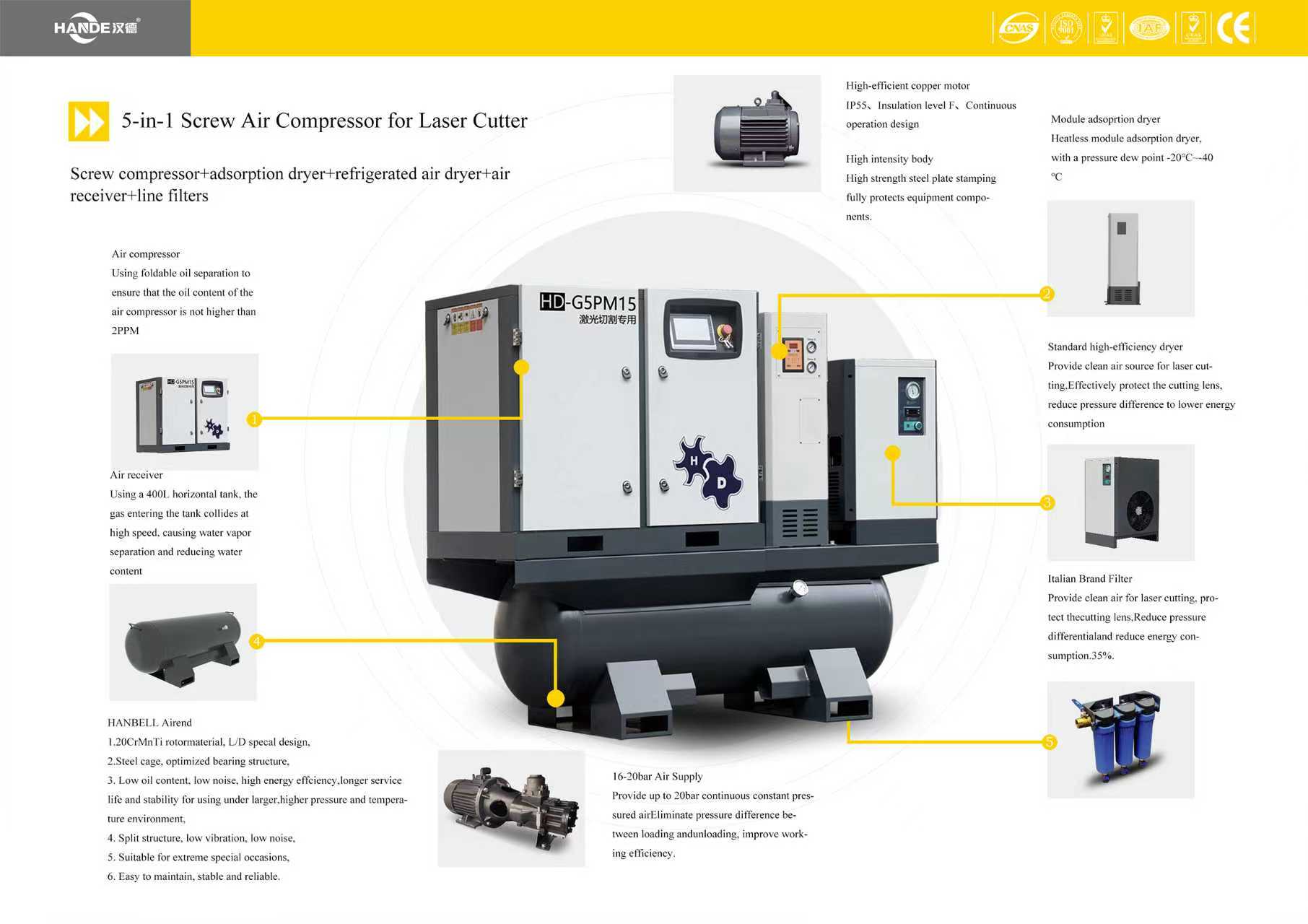

Product Features
The AH host adopts 20CrnTi rotor material, combined with a unique L/D design, which not only endows the host with powerfulperformance, but also enables continuous constant pressure gas supply up to 20 bar, eliminating the pressure difference between loadingand unloading, and improving operational eficiency; talian brand filters provide clean ar source for laser cutting, effectivelv protecting thecuting machine lens, making cutting smoother and smoother, Built in primary drainage reduces the load on the drver and filter to ensurealir quality; Eauipped with a standard high-efficiency drver to improve ai quaity,ensure pressure dew point, and protect laser lenses andcutina heads, Palred with aluminum allov olate heat exchangers, it has ow alr resistance, corosion reslstance, and suiiclent heat
Application industry
Heavy and light industries, mining, hydropower, seaports, engineering construction, ol and gas fields, ralways, ransportation, shipbuilding.energy, military, metal products, sheet metal processing, shellprocessing, laser cutting, chassis processing,frame processing, machine toolprocessing and other industries
Product Specifications:
| Parameters/Model | 单位 | HD-G5PM15 | HD-G5PM22 | ||
| Rated Exhaust Pressure | Mpa | 1.5 | 1.5 | ||
| Rated Exhaust Volume | m³/min | 1.1 | 2.1 | ||
| Ambient Temperature | ℃ | 0~+40 | 0~+40 | ||
| Cooling Method | 风冷 | 风冷 | |||
| Noise Level | dB(A) | 70±2 | 72±2 | ||
| Safety Valve Set Pressure | MPa | 系统最高压力X1.1 | 系统最高压力X1.1 | ||
| Air compressor | Air Volume Adjustment Method | 变频调节 | 变频调节 | ||
| Drive Method | 直联 | 直联 | |||
| Rujuan Ink | L/min | 16 | 24 | ||
| Rujuan Ink Viscosity Grade | 46 | 46 | |||
| Electric motor | Power | kW | 15 | 22 | |
| 转速 | rpm | 4900 | 3400 | ||
| Startup Method | 变频启动 | 变频启动 | |||
| voltage/Frequency | V/Hz | 380/326.7/3PH | 380/226.7/3PH | ||
| Insulation Class | F | F | |||
| Protection Rating | IP55 | IP55 | |||
| Fan | Power | kW | 0.28 | 0.52 | |
| voltage/Frequency | V/Hz | 380/50/3PH | 380/50/3PH | ||
| Rotational speed | rpm | 1300 | 1300 | ||
| Airflow | m³/h(0Pa) | 5700 | 8100 | ||
| Air tank | Volume | L | 400 | 400 | |
| Power | kW | 0.47 | 0.84 | ||
| Rated processing capacity | m³/min | 1.6~2.4 | 2.6~3.4 | ||
| Voltage/Frequency | V/Hz | 220/50/1PH | 220/50/1PH | ||
| Intake Air Temperature | ℃ | ≤60 | ≤60 | ||
| Pressure dew point | ℃ | 2~10 | 2~10 | ||
| Precision Filter | Rated processing capacity | m³/min | 2.8 | 3.5 | |
| Dust removal precision | μm | 0.01 | 0.01 | ||
| Degreasing precision | ppm | 0.005 | 0.005 | ||
| Initial pressure differential | bar | 0.43 | 0.43 | ||
| Adsorption Dryer | Power | kW | 0.15 | 0.15 | |
| Rated processing capacity | m³/min | 1.6 | 2.6 | ||
| voltage/Frequency | V/Hz | 220/50/1PH | 220/50/1PH | ||
| Intake air temperature | ℃ | ≤35 | ≤35 | ||
| Pressure dew point | ℃ | -20 | -20 | ||
| Dimensions (L×W×H) | mm | 2020x865x1685 | 2060x960x1885 | ||
| Unit weight | kg | 490 | 590 | ||
| Outlet size | in | 3/4" | 1" | ||
注:本公司产品在不断优化中,参数如有更改,恕不另行通知;异电压及其他特殊机型可定制,请咨询业务。
