PRODUCT MODEL：HD-EPM2T30-HD-EPM2T315
Motor Power：30KW-315KW
Volume flow：5.2m³/min- 100.0m³/min
Working pressure：0.5Mpa-3.0Mpa
Note: Other special standards can be customized. For more details, please consult us
PRODUCT MODEL：HD-EPM2T30-HD-EPM2T315
Motor Power：30KW-315KW
Volume flow：5.2m³/min- 100.0m³/min
Working pressure：0.5Mpa-3.0Mpa
Note: Other special standards can be customized. For more details, please consult us
Product Features:
1. Adopt asymmetrical rotor design, high volumetric efficiency, energy saving of 10%-15%, high-strength alloy material, stable and durable; Low friction bearing, adapted to frequency conversion control, reducing energy consumption.
2. A full range of heavy-duty frequency converters + Internet of Things, using universal frequency converters to form a frequency conversion speed regulation transmission system, saving energy, reducing production costs, improving productivity and improving product quality.
3. Intelligent microcomputer control system, simple operation, can realize Chinese/English, traditional switching, air filter/oil filter/oil and gas separator/lubricating oil, intelligent monitoring and management of use time, and remote monitoring function for users to choose.
Product Parameters:
| Model | Exhaust pressure | Displacement | power | Ambient temperature | Exhaust port pipe diameter | Cooling method | weight | Dimensions |
| Mpa | m³/min | KW/HP | ℃ | inch | Medical history | L×W×H(mm) | ||
| HD-PM8 | 0.8 | 1.0 | 7.5/10 | -5～45 | Rp1/2 | Air cooling | 170 | 900×700×880 |
| 1.0 | 0.9 | |||||||
| 1.25 | 0.7 | |||||||
| HD-PM11 | 0.8 | 1.8 | 11/15 | -5～45 | Rp3/4 | Air cooling | 225 | 1080×780×1000 |
| 1.0 | 1.5 | |||||||
| 1.25 | 1.2 | |||||||

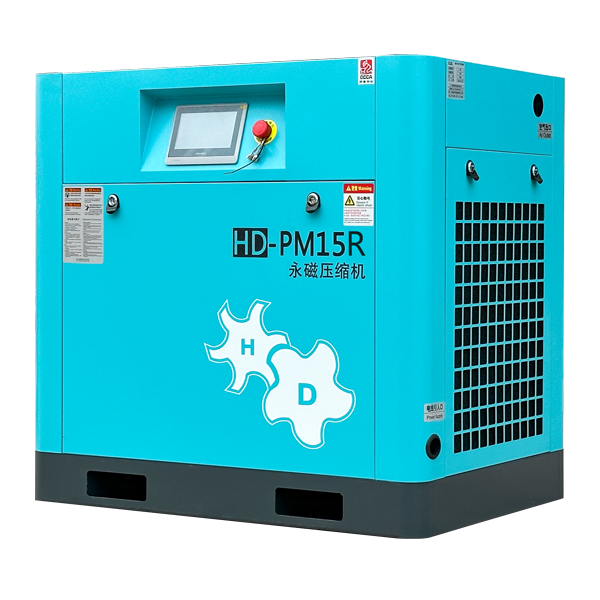

| HD-PM15 | 0.8 | 2.2 | 15/20 | -5～45 | Rp3/4 | Air cooling | 231 | 1080×780×1000 |
| 1.0 | 2.0 | |||||||
| 1.25 | 1.7 | |||||||
| HD-PM19 | 0.8 | 3.0 | 18.5/25 | -5～45 | Rp1 | Air cooling | 290 | 1080×880×1200 |
| 1.0 | 2.7 | |||||||
| 1.25 | 2.1 |
| Model | Exhaust pressure | Displacement | power | Ambient temperature | Exhaust port pipe diameter | Cooling method | weight | Dimensions |
| Mpa | m³/min | KW/HP | ℃ | inch | Medical history | L×W×H(mm) | ||

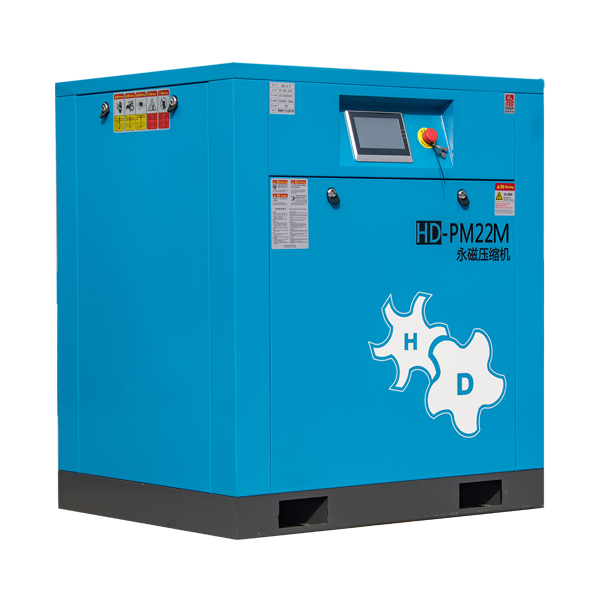

| HD-PM22 | 0.8 | 3.6 | 22/30 | -5～45 | Rp1 | Air cooling | 295 | 1080×880×1200 |
| 1.0 | 3.2 | |||||||
| 1.25 | 2.7 | |||||||
| HD-PM30 | 0.8 | 5.0 | 30/40 | -5～45 | Rp1 | Air cooling | 320 | 1080×880×1200 |
| 1.0 | 4.5 | |||||||
| 1.25 | 3.6 | |||||||

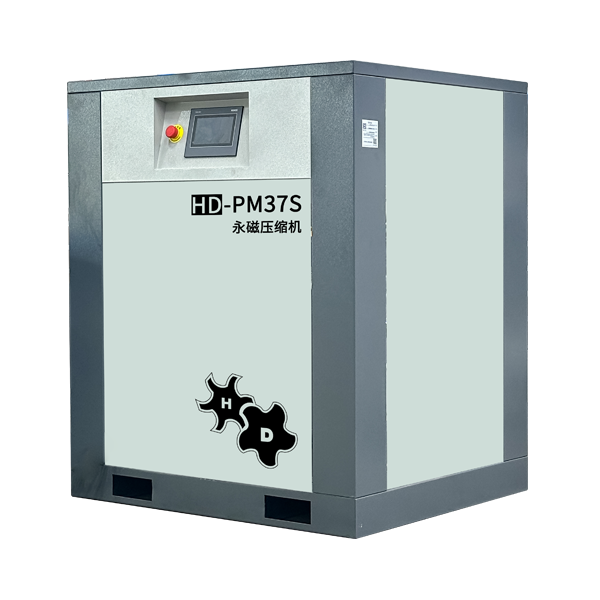

| HD-PM37 | 0.8 | 6.3 | 37/50 | -5～45 | Rp1-1/2 | Air cooling | 465 | 1200×1030×1400 |
| 1.0 | 5.2 | |||||||
| 1.25 | 4.5 | |||||||
| HD-PM45 | 0.8 | 7.3 | 45/60 | -5～45 | Rp1-1/2 | Air cooling | 520 | 1250×1000×1510 |
| 1.0 | 6.3 | |||||||
| 1.25 | 5.4 |
Note: The company's products are constantly being optimized, and the parameters are subject to change without prior notice; Different voltage and other special models can be customized, please consult the business.
