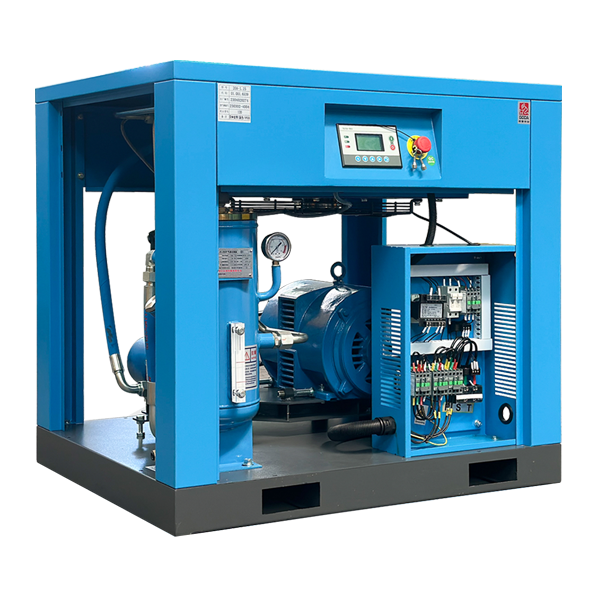

Single Stage Screw Air Compressor-HANDE

HD-B Series Belt Drive Fixed Speed

PRODUCT MODEL：HD-B4-HD-B37

Motor Power：3.7KW-37KW

Volume flow：3.5m³/min- 38.7m³/min

Working pressure：0.7Mpa -1.25Mpa

Note: Other special standards can be customized. For more details, please consult us

Product Information

Product Features

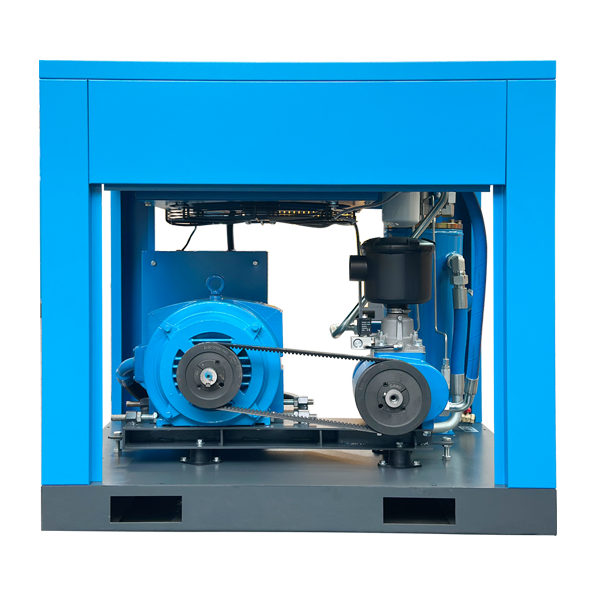

Adopting high-strength screw host, stable operation, suitable for long-term continuous work, and low failure rate. Stable output pressure,suitable for scenarios with low reguirements for air pressure fluctuations; The belt transmission structure is simple, the cost of replacing thebelt is low, and maintenance is convenient.,In addition, the belt can also bufer the vibration of the motor and the machine head, reduceoperating noise, and is the first choice for users with limited budget or stable load

Application industry

Mechanical processing pneumatic tools; Automotive manufacturing/maintenance pneumatic tools; Pneumatic conveying and mixing ofbuilding materials; Construction of buildings, manufacturing of doors and windows; Valve control and material transportation in chemicalplants: Pneumatic control in the power industry; Food packaging; Textile machinery: furniture manufacturing; Mine operation ventilationsystem; Metal smelting and pneumatic cuting; Agricultural grain conveying and spray equipment; Automated sorting of logistics andwarehousing

Product Parameters:

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-B4	0.8	0.4	3.7/5	-5～45	Rp3/4	Air cooling	440	760×600×900
	1.0	0.35
	1.25	0.3
HD-B6	0.8	0.7	5.5/7.5	-5～45	Rp3/4	Air cooling	690	760×600×900
	1.0	0.54
	1.25	0.4
HD-B8	0.8	1.0	7.5/10	-5～45	Rp1/2	Air cooling	710	800×670×930
	1.0	0.8
	1.25	0.6
HD-B11	0.8	1.8	11/15	-5～45	Rp3/4	Air cooling	740	1080×850×1000
	1.0	1.5
	1.25	1.2
HD-B15	0.8	2.1	15/20	-5～45	Rp3/4	Air cooling	1120	1080×750×1000
	1.0	1.9
	1.25	1.5

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-B19	0.8	2.9	18.5/25	-5～45	Rp1	Air cooling	1280	1080×850×1200
		2.5
		2.0
HD-B22	0.8	3.4	22/30	-5～45	Rp1	Air cooling	1520	1080×850×1200
		2.9
		2.3
HD-B30	0.8	4.5	30/40	-5～45	Rp1	Air cooling	1860	1080×850×1200
		4.0
		3.4
HD-B37	0.8	6.0	37/50	-5～45	Rp1-1/2	Air cooling	1930	1200×1000×1500
		5.2
		4.5

Note: The company's products are constantly being optimized, and the parameters are subject to change without prior notice; Different voltage and other special models can be customized, please consult the business.
