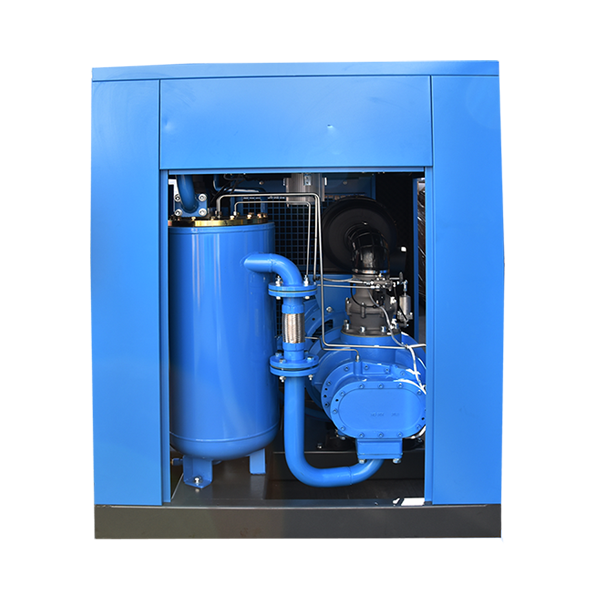

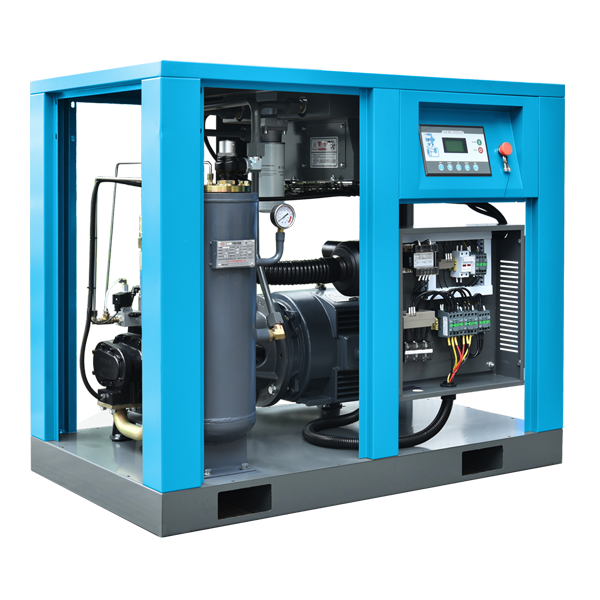

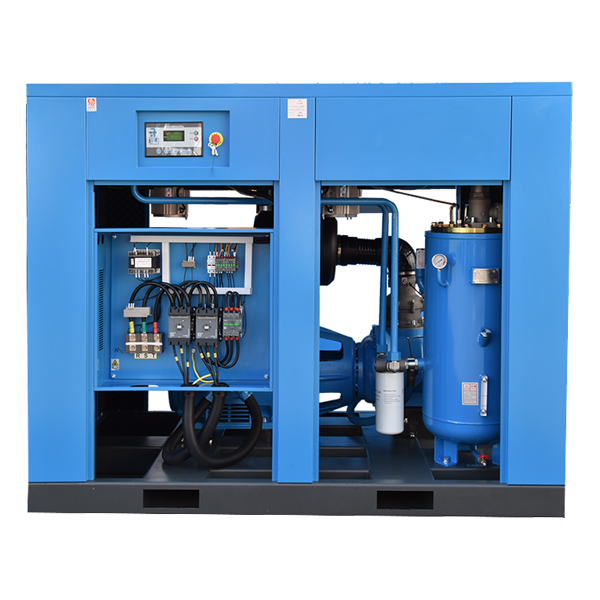

Single Stage Screw Air Compressor-HANDE

HD- Series Direct Drive Fixed Speed

Product Information

Product Features:

1. Features a third-generation high-efficiency screw compressor with an innovative asymmetric rotor design, delivering 10-15% energy savings. A specially engineered low-speed motor boosts efficiency by 3-5%, while high-strength alloy construction ensures long-term stability. Direct-drive transmission maximizes efficiency, and low-friction bearings are optimized for variable frequency control, enabling easy maintenance and significantly reducing downtime.

2. Utilizes IE3 high-efficiency air compressor motors with copper windings and F-class insulation for superior heat dissipation and low noise. Compatible with both fixed-frequency rod and piston compressors, delivering stable and durable performance.

3. Microcomputer-controlled system ensures environmental friendliness, durability, minimal vibration, and low noise. Delivers high efficiency, heavy-duty capability, and quiet operation.

Product Parameters:

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-8	0.8	1.0	7.5/10	-5～45	Rp1/2	Air cooling	197	900×670×880
	1.0	0.9
	1.25	0.7
HD-11	0.8	1.7	11/15	-5～45	Rp3/4	Air cooling	290	1080×750×1000
	1.0	1.5
	1.25	1.2
HD-15	0.8	2.1	15/20	-5～45	Rp3/4	Air cooling	306	1080×750×1000
	1.0	1.9
	1.25	1.7
HD-19	0.8	2.8	18.5/25	-5～45	Rp1	Air cooling	420	1380×850×1160
	1.0	2.2
	1.25	2.0
HD-22	0.8	3.4	22/30	-5～45	Rp1	Air cooling	424	1380×850×1160
	1.0	2.9
	1.25	2.6

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-30	0.8	4.5	30/40	-5～45	Rp1	Air cooling	455	1380×850×1160
	1.0	4.0
	1.25	3.6
HD-37	0.8	6.0	37/50	-5～45	Rp1-1/2	Air cooling	640	1500×1000×1330
	1.0	5.2
	1.25	4.5
HD-45	0.8	7.1	45/60	-5～45	Rp1-1/2	Air cooling	685	1500×1000×1510
	1.0	6.3
	1.25	5.6
HD-55	0.8	9.0	55/75	-5～45	Rp2	Air cooling	1130	1800×1250×1670
	1.0	8.2
	1.25	7.2
HD-75	0.8	12.0	75/100	-5～45	Rp2	Air cooling	1120	1800×1250×1670
	1.0	10.5
	1.25	9.0

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-90	0.8	14.8	90/120	-5～45	Rp2	Air cooled or water cooled	1430	1950×1250×1810
	1.0	12.5
	1.25	10.9

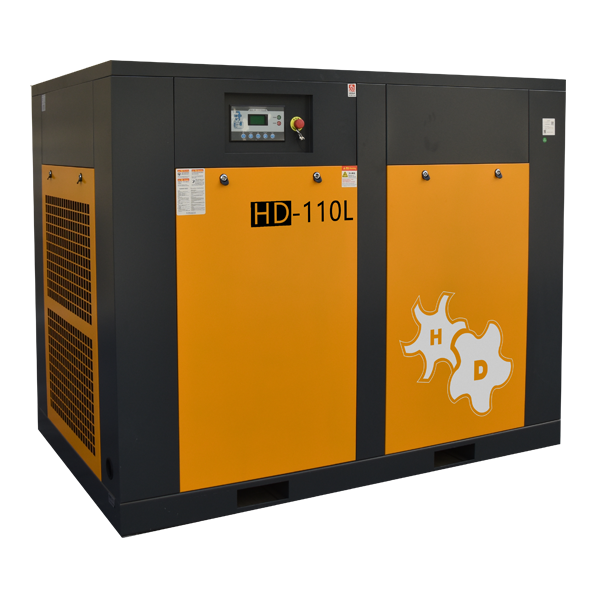

HD-110	0.8	19.5	110/150	-5～45	Rp2-1/2	Air cooled or water cooled	1810	2300×1470×1840
	1.0	15.5
	1.25	14.4
HD-132	0.8	22.1	132/175	-5～45	Rp2-1/2	Air cooled or water cooled	1880	2300×1470×1840
	1.0	18.5
	1.25	16.8
HD-160	0.8	26.0	160/200	-5～45	Rp2-1/2	Air cooled or water cooled	2300	2500×1600×1900
	1.0	22.6
	1.25	20.5
HD-185	0.8	30.0	185/250	-5～45	DN100	Air cooled or water cooled	4200	3650×2100×2280
	1.0	26.0
	1.25	23.2

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-200	0.8	32.8	200/280	-5～45	DN100	Air cooled or water cooled	4400	3650×2100×2280
	1.0	28.0
	1.25	26.0
HD-220	0.8	36.5	220/300	-5～45	DN125	Air cooled or water cooled	4700	3695×2100×2280
	1.0	33.2
	1.25	29.5
HD-250	0.8	40.8	250/350	-5～45	DN125	Air cooled or water cooled	4900	3695×2100×2280
	1.0	36.4
	1.25	33.2
HD-315	0.8	50.0	315/430	-5～45	DN125	Air cooled or water cooled	6800	4300×2365×2380
	1.0	44.5
	1.25	39.5

Note: The company's products are constantly being optimized, and the parameters are subject to change without prior notice; Different voltage and other special models can be customized, please consult the business.
