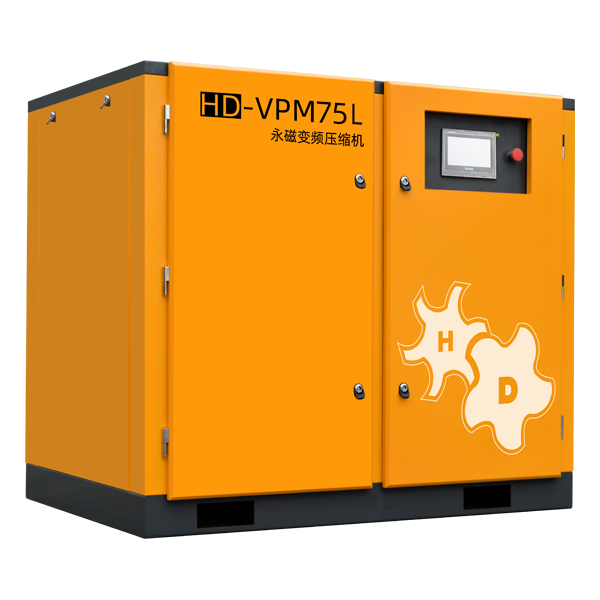

Single Stage Screw Air Compressor-HANDE

HD-VPM Series PM VSD

PRODUCT MODEL：HD-VPM8-HD-VPM315

Motor Power：7.5KW-315KW

Volume flow：0.7m³/min- 50.0m³/min

Working pressure：0.8Mpa-1.25Mpa

Note: Other special standards can be customized. For more details, please consult us

Product Information

Product Features

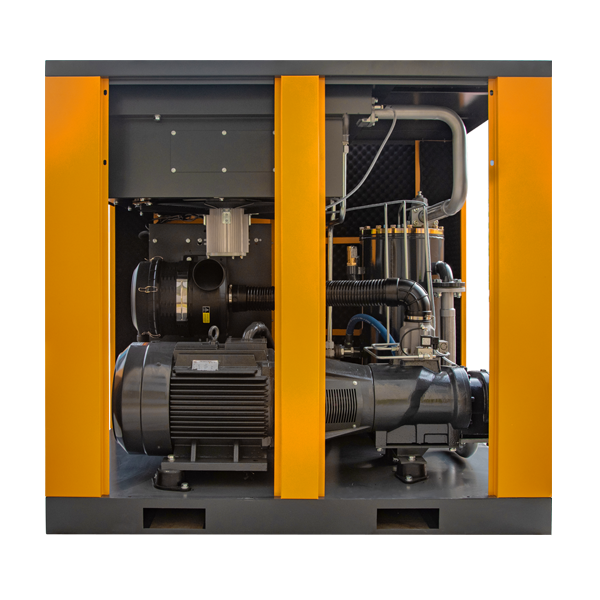

Adopting high-performance permanent magnet synchronous motors, which save 6% -7% energy compared to ordinary asynchronousmotors; Specially designed IP55 protection level variable frequency motor, dustproof and waterproof, suitable for harsh working conditionswith an energy efficiency ratio increased by more than 15%; The motor and host are separated in structure, greatly reducing vibration andnoise; Special materials and sealing processes, high temperature resistance, corrosion resistance, and stable operation under harsrconditions such as high dust and high humidity; Modular design, independent maintenance of key components, greatly reducingmaintenance costs

Application industry

Mining operations; oceanographic engineering; Metallurgical casting: mechanical processing and manufacturing ; Tunnel construction; Factory pneumatic conveying and mixing; etc

Product Parameters:

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-VPM8	0.8	1.0	7.5/10	-5～45	Rp1/2	Air cooling	185	900×670×880
	1.0	0.9
	1.25	0.7
HD-VPM11	0.8	1.8	11/15	-5～45	Rp3/4	Air cooling	238	1080×750×1000
	1.0	1.5
	1.25	1.2
HD-VPM15	0.8	2.2	15/20	-5～45	Rp3/4	Air cooling	245	1080×750×1000
	1.0	2.0
	1.25	1.7
HD-VPM19	0.8	3.0	18.5/25	-5～45	Rp1	Air cooling	324	1080×850×1200
	1.0	2.7
	1.25	2.1
HD-VPM22	0.8	3.6	22/30	-5～45	Rp1	Air cooling	338	1080×850×1200
	1.0	3.2
	1.25	2.7

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-VPM30	0.8	5.0	30/40	-5～45	Rp1-1/2	Air cooling	470	1280×1030×1400
	1.0	4.5
	1.25	3.6
HD-VPM37	0.8	6.3	37/50	-5～45	Rp1-1/2	Air cooling	536	1280×1030×1400
	1.0	5.2
	1.25	4.5
HD-VPM45	0.8	7.3	45/60	-5～45	Rp1-1/2	Air cooling	520	1500×1000×1510
	1.0	6.3
	1.25	5.4
HD-VPM55	0.8	9.2	55/75	-5～45	Rp2	Air cooling	1020	1800×1280×1670
	1.0	8.2
	1.25	7.1
HD-VPM75	0.8	12.0	75/100	-5～45	Rp2	Air cooling	1120	1800×1280×1670
	1.0	11.0
	1.25	9.5

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-VPM90	0.8	15.0	90/120	-5～45	Rp2	Air cooling	1400	1950×1250×1810
	1.0	13.2
	1.25	11.5
HD-VPM110	0.8	19.8	110/150	-5～45	Rp2-1/2	Air cooling	1800	2300×1470×1840
	1.0	16.2
	1.25	14.1
HD-VPM132	0.8	23.2	132/175	-5～45	Rp2-1/2	Air cooling	2000	2300×1470×1840
	1.0	20.5
	1.25	17.4
HD-VPM160	0.8	26.6	160/200	-5～45	Rp2-1/2	Air cooling	2800	2500×1600×1900
	1.0	22.6
	1.25	19.5
HD-VPM185	0.8	30.4	185/250	-5～45	DN100	Air cooling	4300	3650×2100×2280
	1.0	26.0
	1.25	22.8

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-VPM200	0.8	33.2	200/280	-5～45	DN100	Air cooling	4500	3650×2100×2280
	1.0	30.2
	1.25	25.8
HD-VPM220	0.8	36.7	220/300	-5～45	DN125	Air cooling	4800	3695×2100×2280
	1.0	33.2
	1.25	28.6
HD-VPM250	0.8	41.2	250/350	-5～45	DN125	Air cooling	5000	3695×2100×2280
	1.0	36.6
	1.25	34.0
HD-VPM280	0.8	45.0	280/375	-5～45	DN125	Air cooling	6600	4300×2365×2380
	1.0	40.8
	1.25	36.2
HD-VPM315	0.8	50.0	315/430	-5～45	DN125	Air cooling	6800	4300×2365×2380
	1.0	46.5
	1.25	40.0

Note: The company's products are constantly being optimized, and the parameters are subject to change without prior notice; Different voltage and other special models can be customized, please consult the business.
